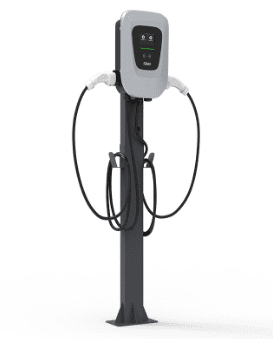

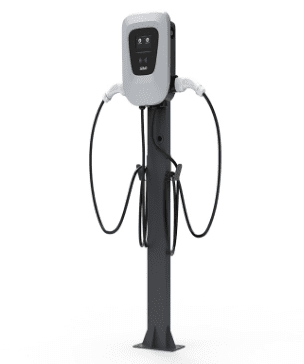

PS2107E22. Wall-mounted / column-type AC230V; 32A; 22KW household type 2 electric vehicle smart charger.
Highlights:
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection
Details:
PS2107E22. Wall-mounted / column-type 3-phase AC household type 2 electric vehicle smart charger. Suitable for US; EU; JP; UK and other international electrical standards; AC230V± 15%; 32A; 22kW household type 1 / 2 electric vehicle intelligent charging station.
technical parameter:
Commodity code: PS2107E22.
Trade name: Wall-mounted / column-type 3-phase AC household type 2 electric vehicle intelligent charger
Commodities applicable to: US; EU; JP; UK and other international electrical standards
Input the wiring scheme: 3P + N + PE
Input voltage: 230VAC soil 10%; 400VAC ± 10% L2
Output voltage: 230VAC soil 10%; 400VAC ± 10% L2
Output rating: 32A; 22kw
Rated frequency: 50 Hzor-60Hz
Operating temperature: -30°C~ + 50°C
Operating humidity: 5%~98%
Cable length: random standard with 5m. Support to purchase 10m; 15m
Cable connectors: 2set; SAE J1772; EC61851-1; IEC 62196-2
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU plug / UK plug / CEE plug
Support communication: APP; OCPP1.6J; RS-485; LAN; 4G; RFID card
Charging mode: APP; plug and charging (optional)
Connector mechanical working life: 10; 000 times
User interface and control: APP control; button control; card control
Key surface indicator: charging time; real-time current / voltage / power / connection / connection / charge / fault; LCD 4.3-inch touch color screen (optional)
Quality assurance: 12 months

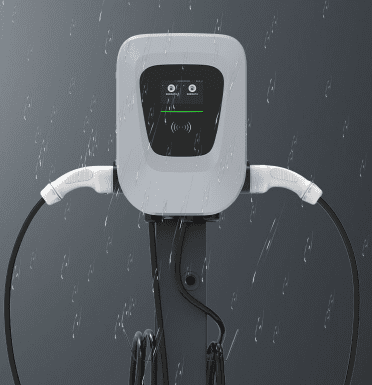

Waterproof grade: IP65
Noise control: 60 dB
Product Certification: 3C; CE; ROHS; REACH; cULus.
Product features:
1. The APP control of the
△ Set the current: when the power grid is overloaded; you can set the current;
△ Control the stop and start: control the stop and start of your phone; you can control it anywhere;
△ Reservation charging: If you want an electric car to charge at night; booking charging through the APP is a good choice; very convenient;
△ Record: You can view the charge record through the APP at any time;
△ This is the best choice for you into the domestic market.
2. Load balance management:
△ Limit the total charging load can protect the local power grid;
△ Sharing the charging load can reduce the required cost of power connection;
△ Choose the open CT (current transformer) as the current sensor; and there is no physical wiring between the equipment; with the advantages of open and closed installation; convenient and fast wiring; and no additional infrastructure or installation cost.
3. Specifications
△ Material: the front panel is tempered glass; with the advantages of scratch prevention and high quality visual effect. The rear cover is made of high quality metal plate; special integral molding; suitable for indoor and outdoor safety.
△ OEM or ODM available: logo; brand; design; size; color; function; fault information; etc.; support for customization;
△ 3.5-inch highlight LCD screen: display real-time charging current; voltage; power consumption; time;
△ Multi-function installation wall installation or base application.
4. Protect
△ High quality; safe and reliable use of production design standards: overvoltage protection; overvoltage protection; overload protection; short circuit protection; leakage protection; grounding protection; over temperature protection; surge protection; etc.
